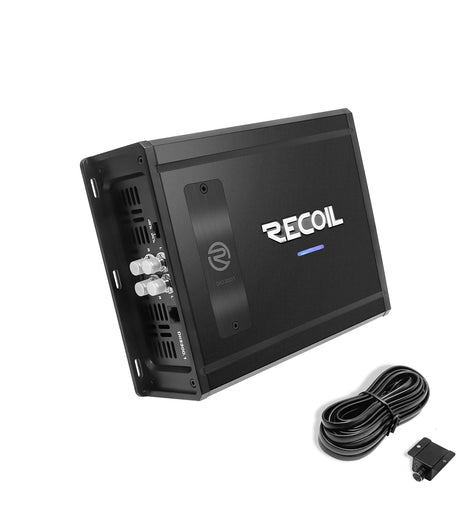

DII SERIES AMPLIFIERS

Don’t let Recoil DII series amp’s modern styling and small size fool you though, Utilizing the latest
Class-D technologies, the ultra-compact DII series amplifiers are engineered to deliver loads of audio
output power, with incredible efficiency. For your convenience, the DII amps’ controls can be found on
top of the amplifier, beneath a protective cover.
• Recoil proprietary Class-D technology
• 4/2 Ohm muti-impedance constant power
• 4 Ohm bridged capable
• Turn-on mode selection (REM, VOX, DC)

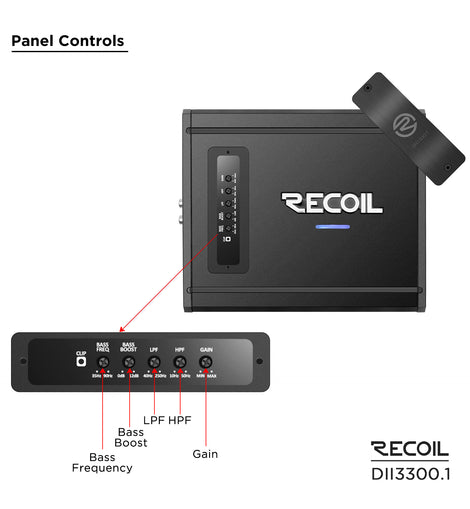

• Top mounted control panel
• 2/4 channel input switch

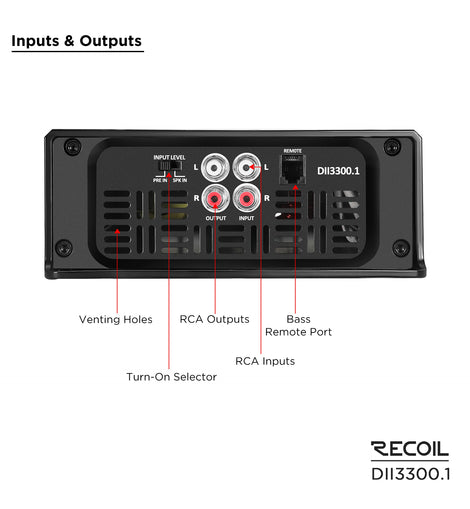

• RCA pass-through outputs
• Clip detection and indicator LEDs

SPECIFICATIONS

• 4-Way Protection Circuit: Thermal, Voltage, Speaker, DC

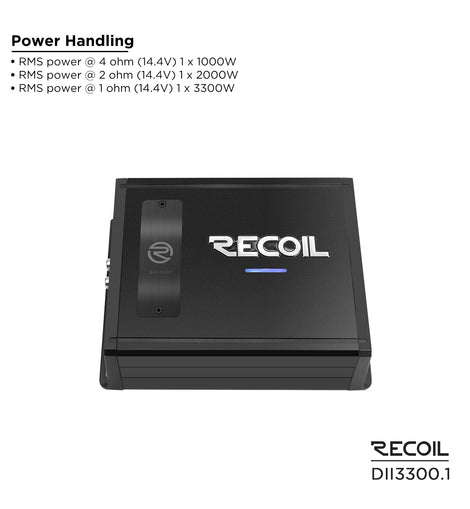

• Power @ 1 Ohm (14.4V): 3300W × 1
• Power @ 2 Ohm (14.4V): 2500W × 1
• Power @ 4 Ohm (14.4V): 1000W × 1
• Power (Bridged) @ 4 Ohm (14.4V): N/A
• Power (Bridged) @ 2 Ohm (14.4V): N/A
• Operating Voltage: 9V–16V
• Idling Current (Power On): 920mA
• Frequency Response: 10Hz–270Hz
• Signal-to-Noise Ratio (SNR): 98dB
• THD+N (@1W): < 0.12%
• Input Sensitivity (Low Level): 1.1V–11V
• Input Sensitivity (High Level): 0.2V–2.5V
• Bass Boost: 0–12dB
• Subsonic Filter: N/A
• Crossover LPF: 44Hz–270Hz
• Crossover HPF: 11Hz–54Hz
• Bass Remote: Yes
• Clip Indication: 1%
• Fuse Rating: 230A

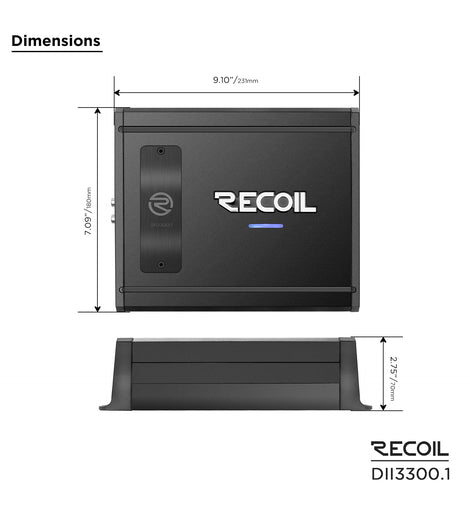

• Inches: 9.1" × 7.09" × 2.7"
• Metric: 231mm × 180mm × 70mm
