Class D 4-Channel Amplifier, 800 Watts Max Power, RMS 100 Watts x 4@2 Ohm; RMS 60 Watts x 4@4Ohm; RMS (Bridged): 200 Watts x 2@4Ohm

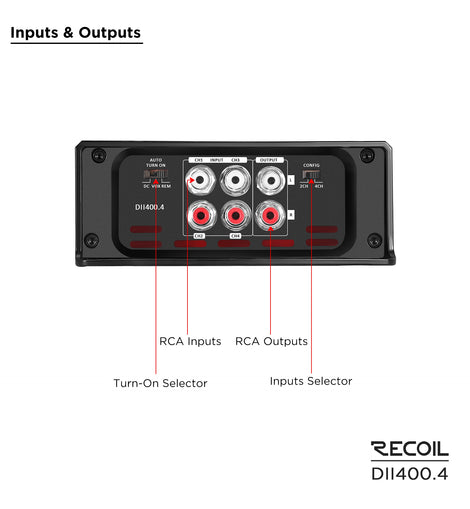

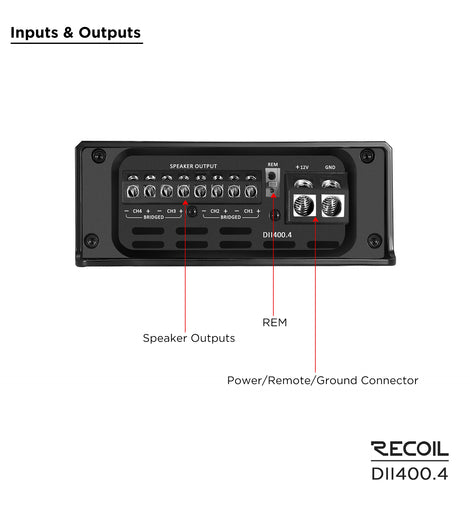

Features: RCA level and speaker level inputs / Turn-on mode selection (REM, VOX, DC) / RCA pass-through outputs / Thermal, voltage, speaker, short circuit protection / 2/4 channel input switch

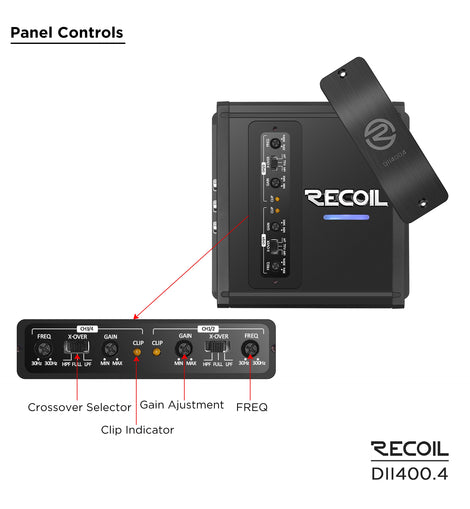

Top mounted clip LED indicator and control panel for easy access, such as the gain, LPF, HPF, crossover, etc.

DII series amps are designed with conformal coated circuit board protects against dust and water. They can be used for powersports, marine, golfcart and bike applications.

Highly efficient heatsinks keep the amplifier cool with a sophisticated new look. Ultra-compact dimension: 5.55″ x 5.37″ x 2.09″ (141mm x 136.5mm x 53mm)

Introductions:

Don’t let Recoil DII series amp’s modern styling and small size fool you though, Utilizing the latest Class-D technologies, the ultra-compact DII series amplifiers are engineered to deliver loads of audio output power, with incredible efficiency. For your convenience, the DII amps’ controls can be found on top of the amplifier, beneath a protective cover.

Specifications:

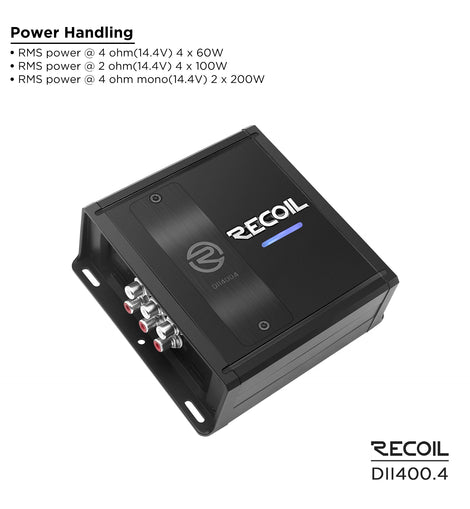

RMS power @ 4 ohm (14.4V):  4 x 60W

RMS power @ 2 ohm (14.4V):  4 x 100W

RMS power @ 1ohm (14.4V):  N/A

RMS power @ 4 ohm mono (14.4V):  2 x 200W

Frequency Response:  10Hz-24KHz

Signal to Noise:  85dB

Efficiency @ 4 ohm:  78%

Input Sensitivity:  0.2V-12V

High Pass Filter:  3OHz -300Hz

Low Pass Filter:   3OHz-300Hz

Fuse Rating (ATC):  40A

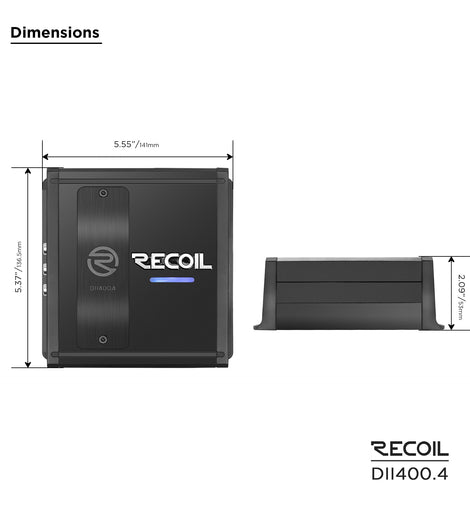

Dimensions (mm):  5.55″ x 5.37″ x 2.09″(141mm x 136.5mm x 53mm)
