Don’t let Recoil DII series amp’s modern styling and small size fool you though, Utilizing the latest
Class-D technologies, the ultra-compact DII series amplifiers are engineered to deliver loads of audio
output power, with incredible efficiency. For your convenience, the DII amps’ controls can be found on
top of the amplifier, beneath a protective cover.
• Recoil proprietary Class-D technology
• 4/2 Ohm muti-impedance constant power
• 4 Ohm bridged capable
• Turn-on mode selection (REM, VOX, DC)

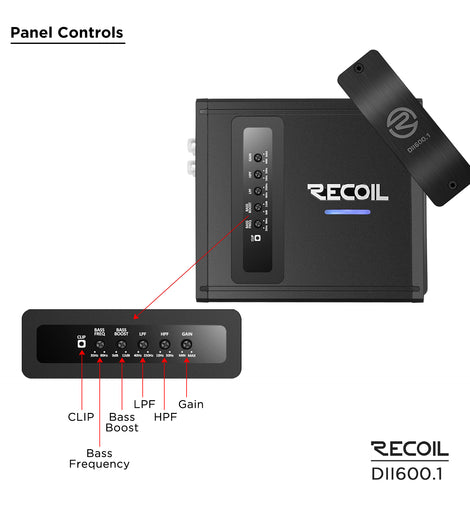

• Top mounted control panel
• 2/4 channel input switch
• RCA pass-through outputs
• Clip detection and indicator LEDs

 SPECIFICATIONS

• Model: DII600.1
• Amplifier Class: Class D
• Channel Configuration: 1-Channel (Monoblock)

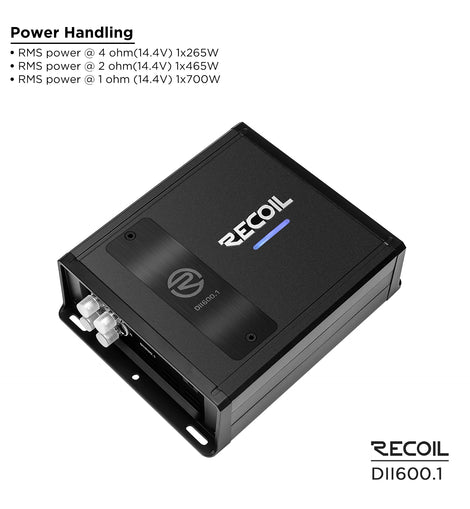

• Power Output:
• @ 1 Ohm: 1 × 700W RMS
• @ 2 Ohms: 1 × 465W RMS
• @ 4 Ohms: 1 × 265W RMS
• Frequency Response: 10 Hz – 250 Hz
• Input Sensitivity: 0.25 – 12 V
• Signal-to-Noise Ratio: 100 dB
• Built-in Filters:
• High-Pass Filter (HPF): 10 – 50 Hz
• Low-Pass Filter (LPF): 40 – 250 Hz
• Bass Boost: 0 – 12 dB

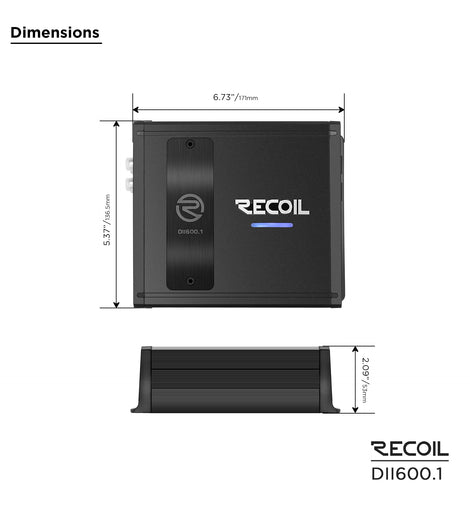

• Physical Dimensions:
• Size (Inches): 6.73" × 5.37" × 2.09"
• Metric: 171 mm × 136.5 mm × 53 mm
